X830 V2.0 HDD Expansion Board wSafe Shutdown Storage Module

Raspberry Pi X830 V2.0 HDD Expansion Board w/Safe Shutdown Function SATA HDD Storage Module for Raspberry Pi 3 B+Plus/3B
Overview:
It\'s time for idle hard drives to work. With our X830 expansion board, you can build a small NAS, music player box or other interesting things.
It\'s time to use idle hard drives. You can DIY a small NAS, music player or our X830 expansion board.
X830 Extension Board provides a complete storage solution for raspberry pie.
For: raspberry Pie 3 model B/2B/B+
Supports USB 3.0 w/high quality USB 3.0 cable (length 80 cm/2.62 inch; 5.96 mm/0.19 inch diameter)
Operating System: All Raspberry Pi Operating SystemsFeatures:
- Operating System: All Raspberry Pi Operating Systems
- Support up to 10TB 3.5 inch SATA hard drive
- Ideal Raspberry Pi Storage Solution
- USB 3.1 Gen 1 to SATA 6Gb/s Bridge Controller
- The USB 2.0 connection provides Raspberry Pi\'s Plug and Play (now the raspberry pie only supports USB 2.0)
- Fast File Transfer via PC or Mac High Speed USB 3.0 Connection
- Power for Raspberry Pi - No additional power for RPi
- Reserve DC 5V or 12V output for other applications
- Retain power switch port
- Reserve 5V port of power management board
Support secure shutdown (see below or GitHub for installation scripts);
Use more commonly used DC 12V power adapter;
Increase screw hole position for large capacity hard disk (customer feedback);
Using the new driver chip to support the installation system and boot on the hard disk
Remove the jumper cap of V1.1 version.
PS:
Since we know that power supply is very important for hard drives, please do not use power adapters that do not meet our requirements. Use high-quality power adapters, or you may encounter problems, such as unrecognizable hard drives.
Note:
Do not charge your RASPERRY PI through PI\'s MIRO USB socket.Specifications:
Material: ABS

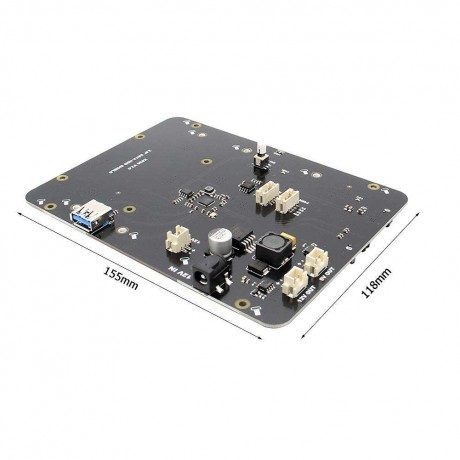

X830 expansion board size: 155*118*75mm/6.1*4.65*2.95\"
Weight: 475gNotes:
1. Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
2. Please allow slight measuring deviation due to manual measurement.

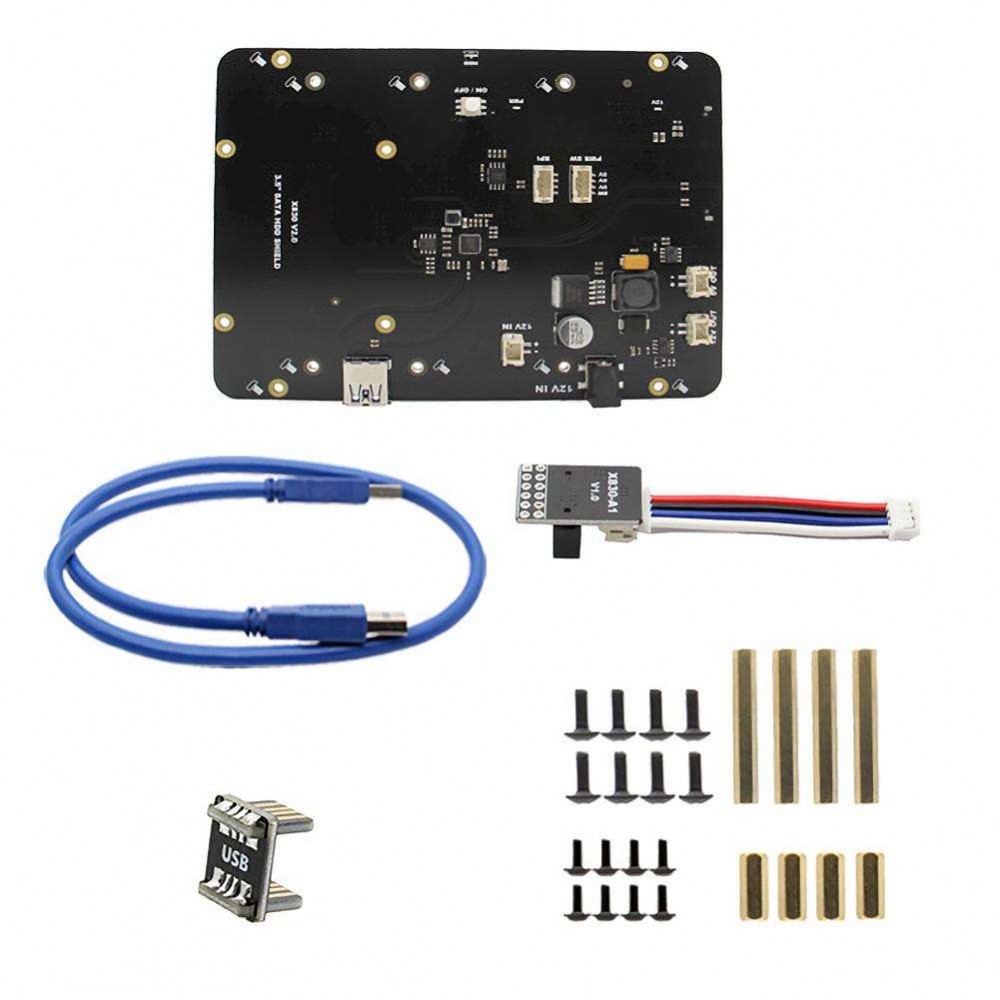

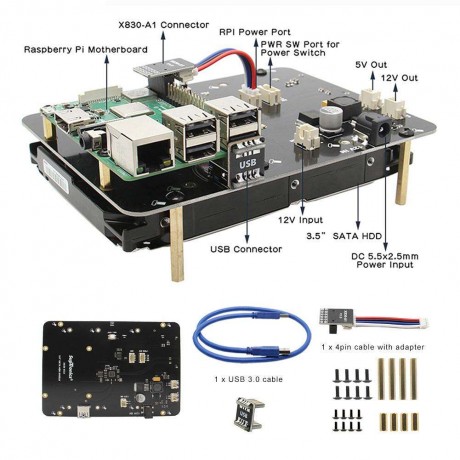

Package Content:
1 x X830 V2.0 board
1 x USB connector
1 x 4Pin cable with adapter
1 x USB 3.0 cable(about 60cm)

1 x Installation screw pack
