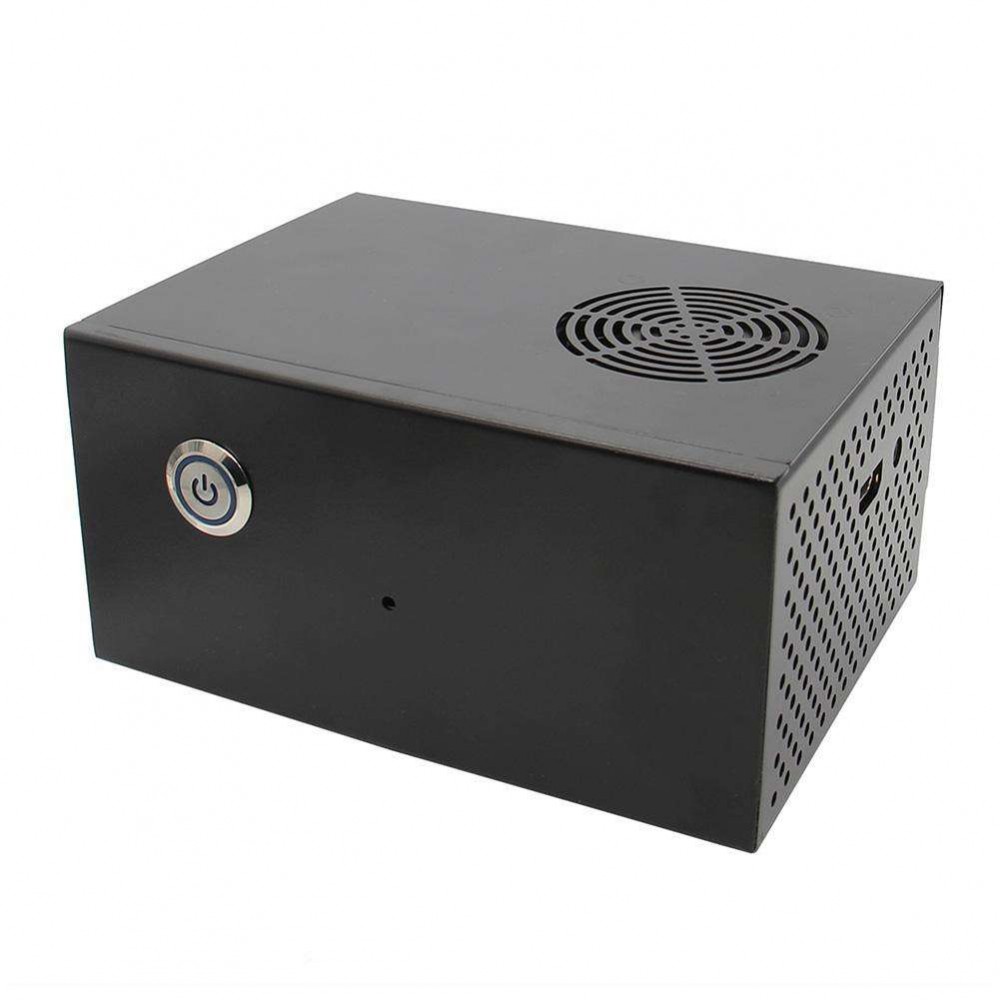

Raspberry Pi X830 HDD SATA Storage Board Matching Metal Case/Enclosure + Power Control Switch + Cooling Fan Kit
Overview:This is metal case with super mute cooling fan kit , it is very easy to install and a perfect choice for X830(V1.0/V2.0) HDD storage board user.
Features:Power control switch with beautiful lamp.

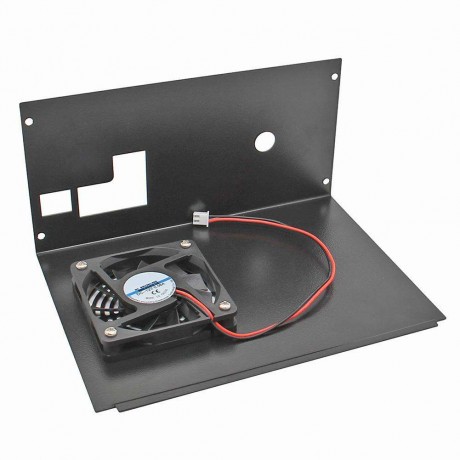

Support super mute cooling fan cooling holes design.

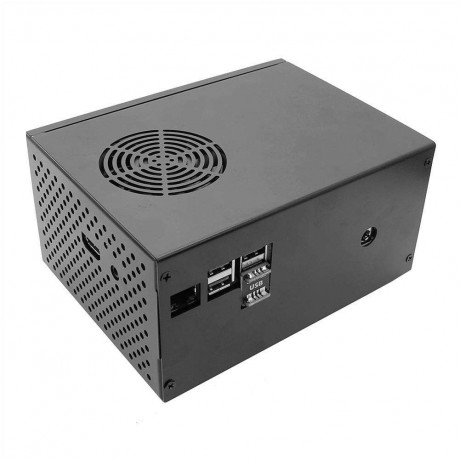

Access to the PI consumer ports: HDMI, A/V Connector, Ethernet, 2-USB.
Fantasy touching feeling and high quality.
Specifications:Material:Alloy

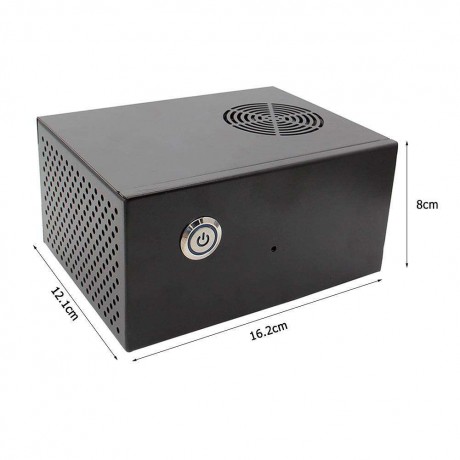

(LxWxH) Size: 16.2 x 12.1 x 8cm/6.37x4.76x3.15inch (case wall thickness: 0.1cm/0.04inch)
Weight: 563g

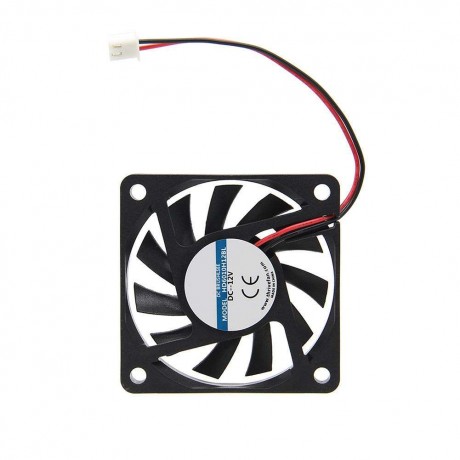

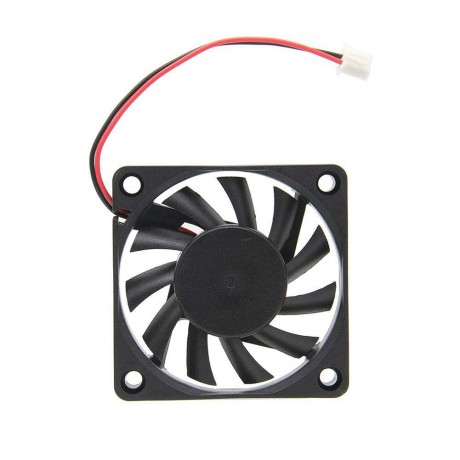

Update of Cooling Fan:
Rated voltage: DC 12V;
Rpm: 150000RPM;
PH2.54 B Terminal
Lead Wire: Red+,Black-/10cm
Screw holes: Compatible with M3/M4, please use the screws version you need.
Note:Please move the jumper cap from the 12V/EN to 5V/EN when you use the power switch to control the power of raspberry pi and X830 storage board, or the power switch is not work.
Notes:The Raspberry Pi X830 V1.0(2.0) 3.5\" SATA HDD Expansion Board and the Raspberry pi 3 board are both not included.
Please move the Jumper cap from the 12V/EN to 5v1/EN when you use the power switch to control the power of raspberry pi and X830 storage board. if not, the switch will not work and keep power on.
The max.height of the 3.5\" SATA HDD used with this metal case should be less than 29mm/1.14inch.

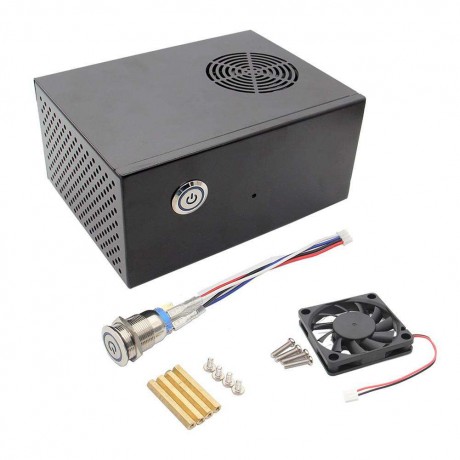

Package Content:
1 x Metal case
1 x Power switch (with 4 pin cable, cable length is about 12cm/4.72inch)
1 x Cooling fan (with install screws)
4 x M3x32 Copper spacer (female to female)
4 x M3x10 screws
