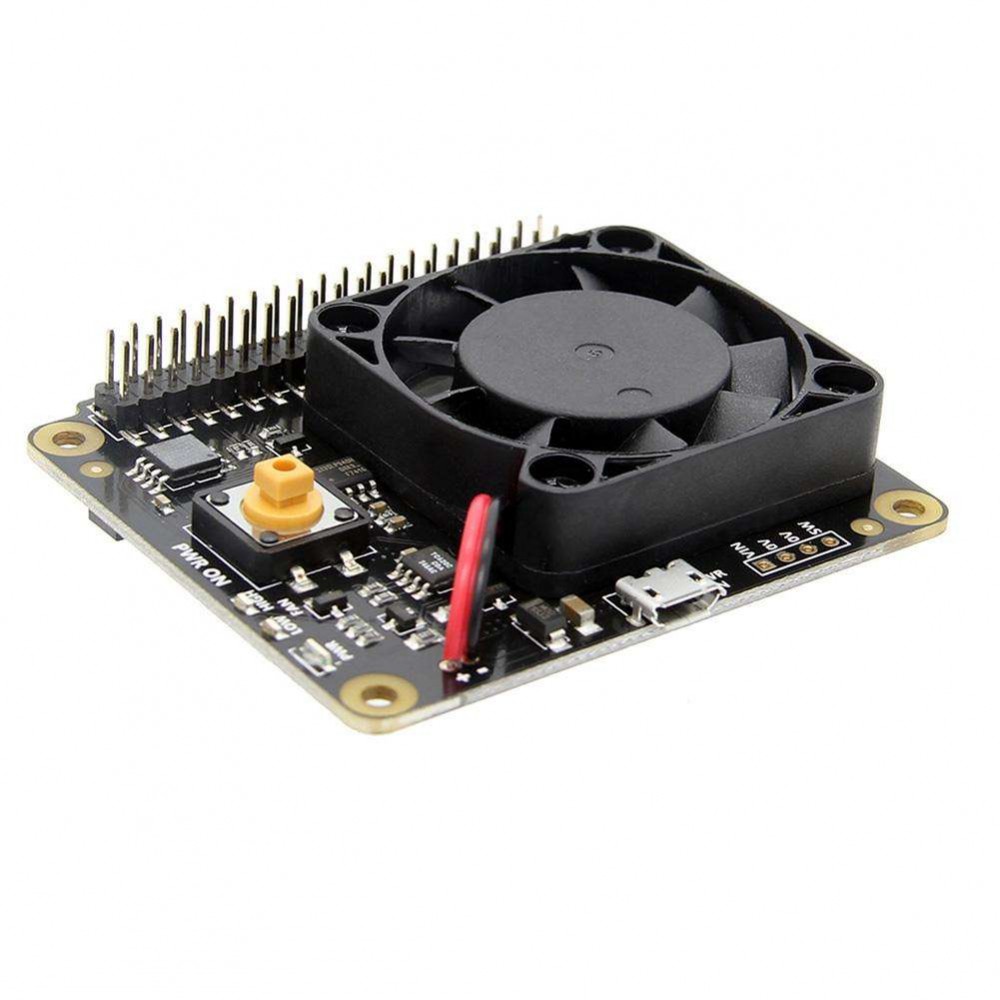

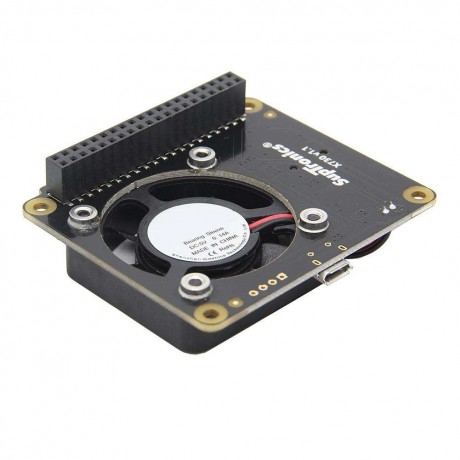

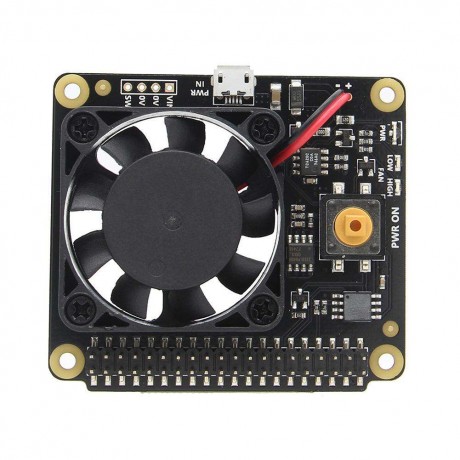

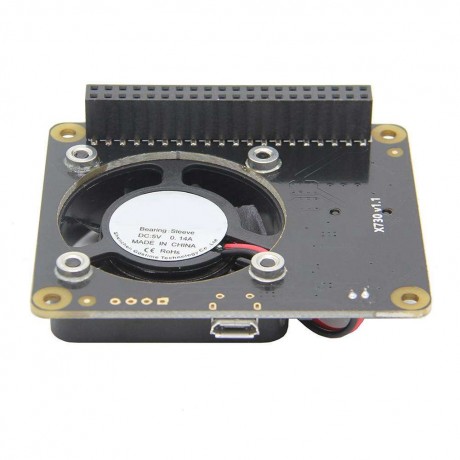

ABS X730 V1.1 Auto Cooling Power Management Expansion Board for Raspberry Pi Features:Power Management
1. Intelligent and safe power management.
2. Press the power button to turn on.
3. Press the button and hold for 1~2seconds to reboot.
4. Press the button and hold for 3~7seconds for safe shutdown.
5. Press the button and hold for >8seconds to force shutdown.
6. Supports safe shutdown and full poweroff through software.
7. On-board LED shows the status of power on, reboot and shutdown.
8. Powers the Raspberry Pi via the 40-pin header - no additional cabling required.Cooling Fan
1. Dual trip point temperature controlled cooling fan.
2. Auto-Control the fan for Cooling / quiet Operation.
3. Board tempeature <18℃ - Fan off.
4. Board tempeature >18℃ - Fan running low.
5. Board tempeature >38℃ - Fan running at full speed.
6. On-board LEDs show the status of fan running low and high.
7. No driver and setting required.Others:
1. Reserved 40-pin stackable Header for Add-On Boards.
2. Works with all current models of the Raspberry Pi using a 40 pin header.

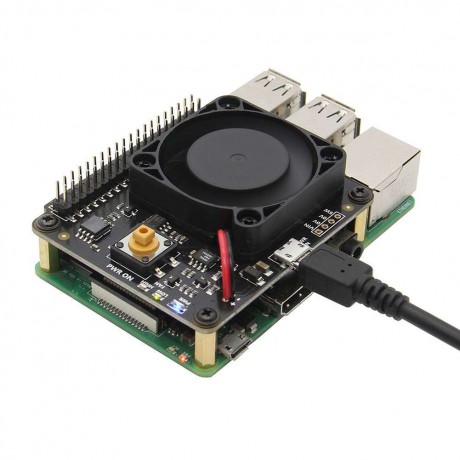

3. On-board micro-USB socket for power input - No need to change the power adapter.

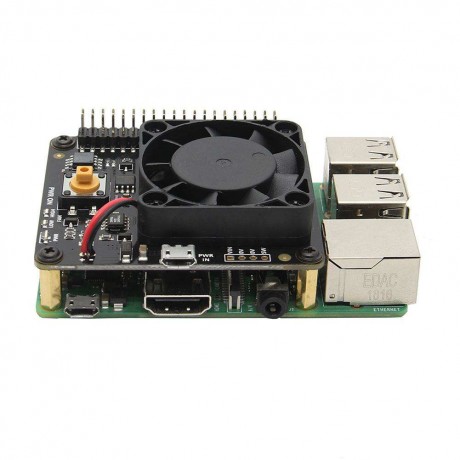

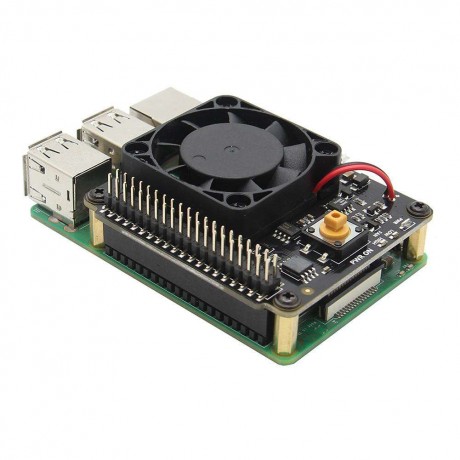

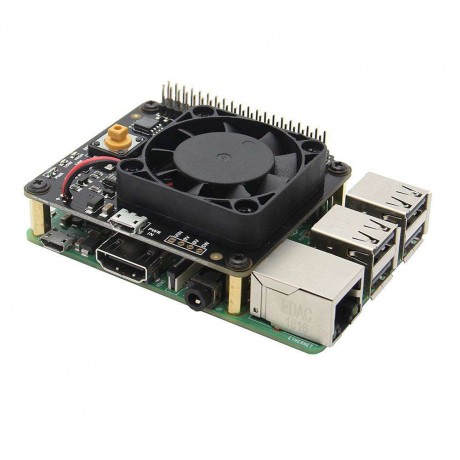

Descriptions:The X730 is a multifunctional expansion board for all current models of the Raspberry Pi using a 40 pin header.It provides intelligent and safe power management, safe shutdown and full poweroff through software, an automatic temperature controlled fan which enables the use of the Raspberry Pi in extreme conditions including very high temperature environments.The X730 also reserves the 40-pin header that can be stacked with other Raspberry Pi accessory boards for enhanced applications.
Specifications:Material: ABS

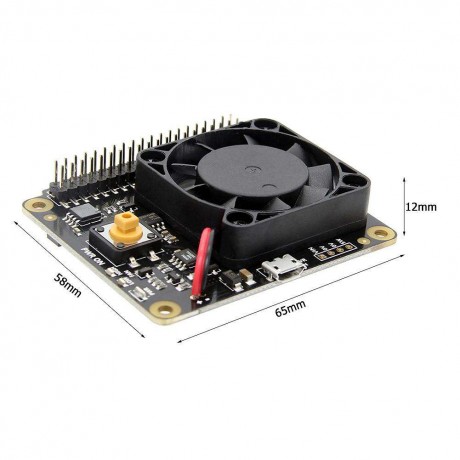

Size: 65*58*12mm/2.55*2.28*0.47\'\'
Weight: 44g
Notes:Please allow 1-3mm differs due to manual measurement.
Due to the different display and different light, the picture may not show the actual color of the item.Thanks for your understanding.
Package Content:
1 x X730 Expansion Board
2 x Mounting Screw Packages
