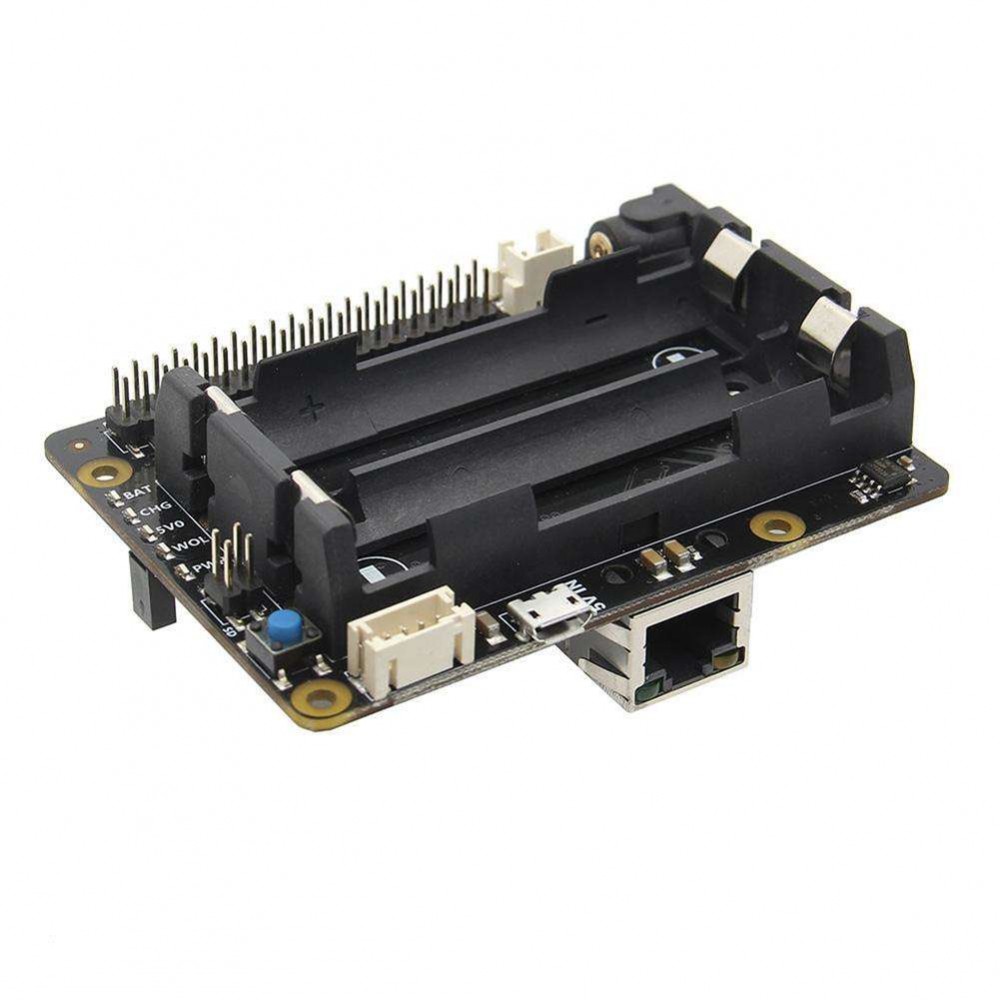

X720 UPS Power Management Expansion Board RTC Wake on Lan

X720 UPS Power Management Expansion Board RTC Safe Shutdown Wake on Lan for Raspberry Pi
Features:
1. Smart Uninterruptible Power Supply (UPS).
2. Provides continuous operations for up to 10hours (depending on battery type used).
3. 5.1V 3000mA Power Backup for even the most demanding Pi 3 set ups.

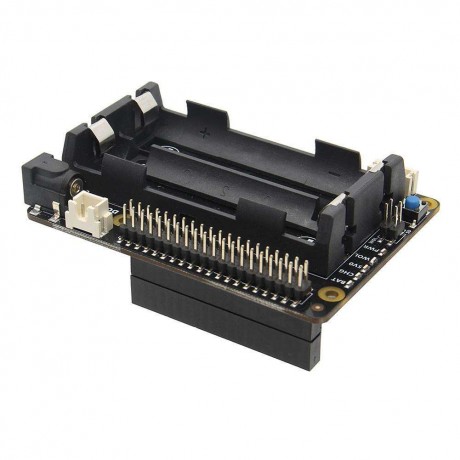

4. 18650 dual Cells Lithium Ion Holder.
5. Can work with single or dual 18650 Lithium Ion battery(Not Include).
6. Integrated battery protection circuit.
7. Integrated over current protection and over voltage protection.
8. Intergrated Maxim\'s fuel-gauge systems (Reading battery voltage and precentage via i2c).Intelligent automatic charging and discharging
1. Automatic safe shutdown when battery low (voltage <3.0V).
2. On-board LED blinking when the battery condition low (voltage <3.0V).
3. On-board LEDs show the status of battery charging and discharging.Intelligent and safe power management
1. Press the power button to turn on.
2. Press the button and hold for 1~2seconds to reboot.
3. Press the button and hold for 3~7seconds for safe shutdown.
4. Press the button and hold for >8seconds to force shutdown.
5. Supports safe shutdown and full poweroff through software.

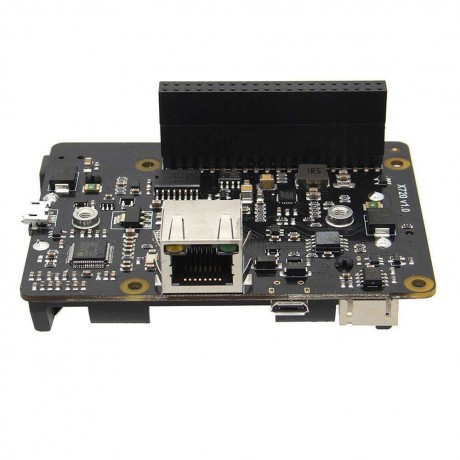

6. On-board LED shows the status of power on, reboot and shutdown.Integrated second 10/100M fast ethernet
1. Supports remote power on/wake on lan via Link-change, Magic packet, MS wakeup frame.
2. On-board LED shows the status of power on/wakeup packet indication.Integrated Hardware Real Time Clock (RTC) with Battery Back-Up
1. Keeps track of the time while the Raspberry Pi is switched off.
2. Allows the Raspberry Pi to retrieve the current date and time when it is switched back on.
3. Uses the most precise DS3231 RTC real time clock.
4. Uses the 18650 battery to maintain the date and time - no additioanl battery required.Reserved 40-pin stackable Header for Add-On Boards
1. Powers the Raspberry Pi via the 40-pin header - no additional cabling required.
2. Works with all current models of the Raspberry Pi using a 40 pin header.
3. Power management and second ethernet can still work without battery.

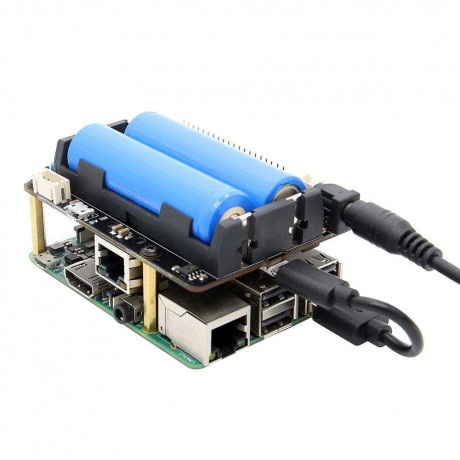

4. On-board DC jack (5.5*2.5mm) and micro-USB socket convenient for power input.
5. On-board connector allowing to connect external power switch and DIY your perfect case.
6. Mounting holes and standoffs provide mechanical stability of the Raspberry Pi and X720 assembly.Descriptions:

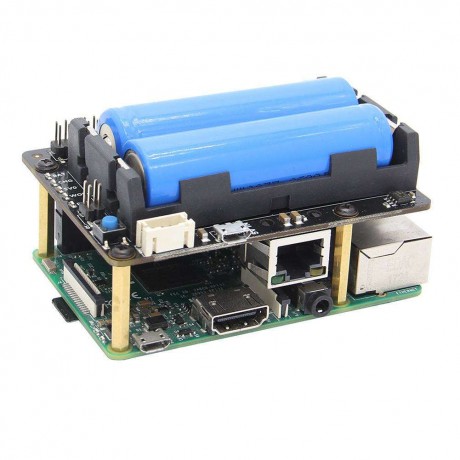

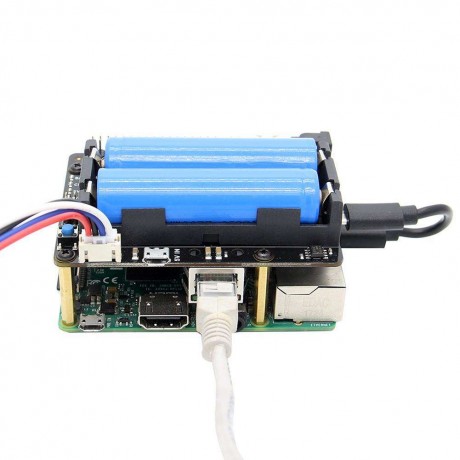

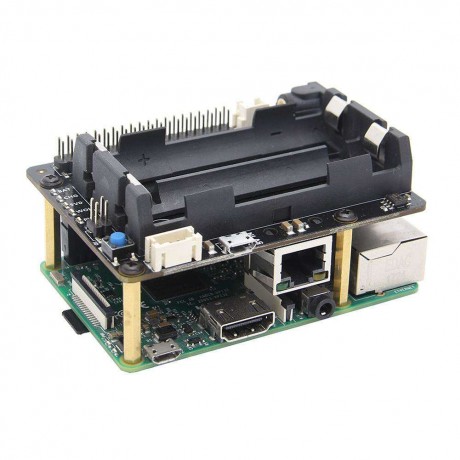

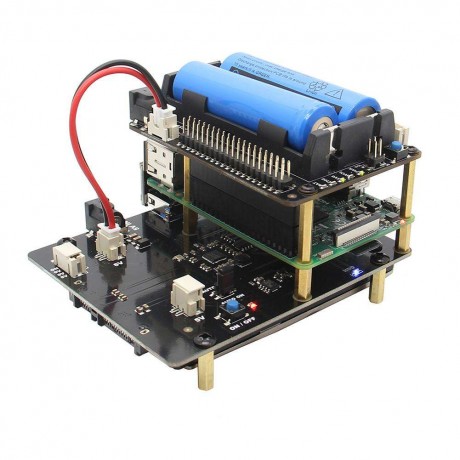

The X720 is a multi-functional expansion board for all current models of the Raspberry Pi using 40 pin header.It provides intelligent and safe power management, remote power on/wake on lan, safe shutdown and full poweroff through software, an advanced uninterruptible power supply, second 10/100M fast ethernet, and a real- time clock. The X720 reserves the 40-pin header that can be stacked with other Raspberry Pi accessory boards for enhanced applications. The X720 can also be used with the X820 (2.5\" HDD/SSD Shield) and X850 (Msata SSD shield) for safe data backup. Specifications:
Power: 5Vdc +/- 5% via onboard micro USB socket
Ports and connectors:
DC interface: 5.5x2.5mm/0.21*0.09\'\'
Micro USB socket
Power output connector: XH2.54 2 pin

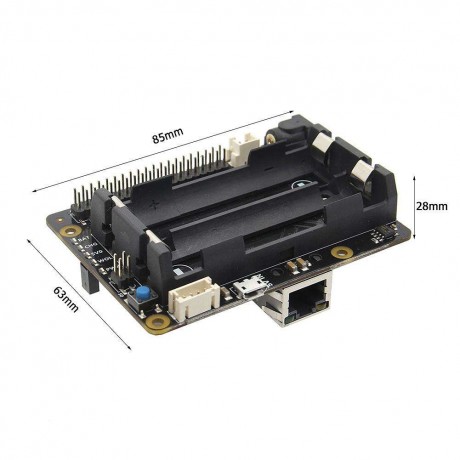

PCB size: 85*63*28mm/3.34*2.48*1.1\'\'
Weight: 57gTips:
Raspberry pi and 18650 batteries are not included.
Please use the standard 18650 lithium battery.Notes:
Please allow 1-3mm differs due to manual measurement.
Due to the different display and different light, the picture may not show the actual color of the item.Thanks for your understanding.

Package Content:
1 x X720 Expansion Board
2 x Mounting Screw Packages
