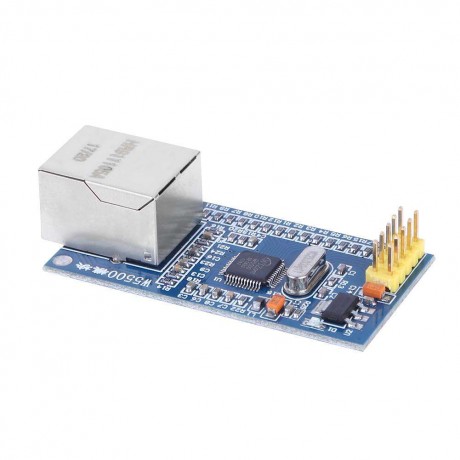

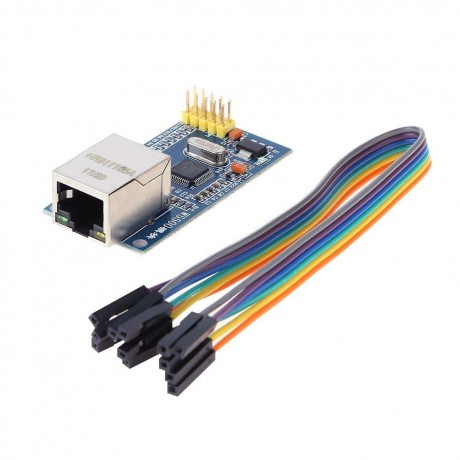

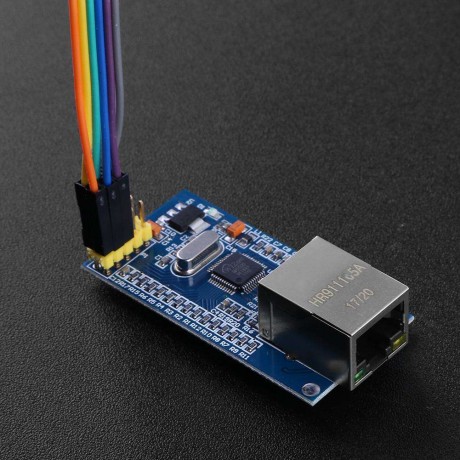

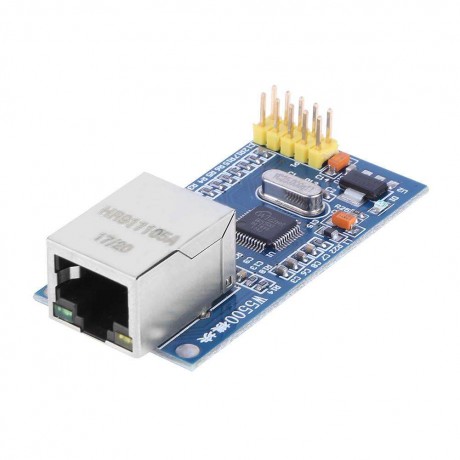

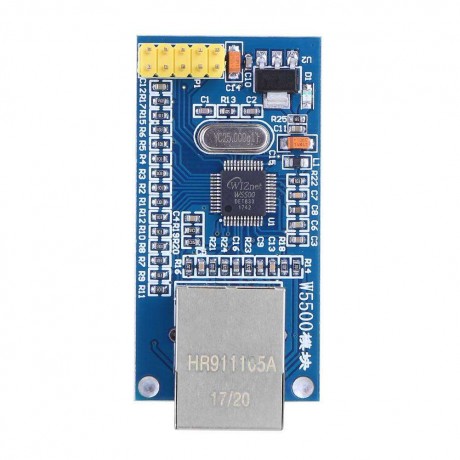

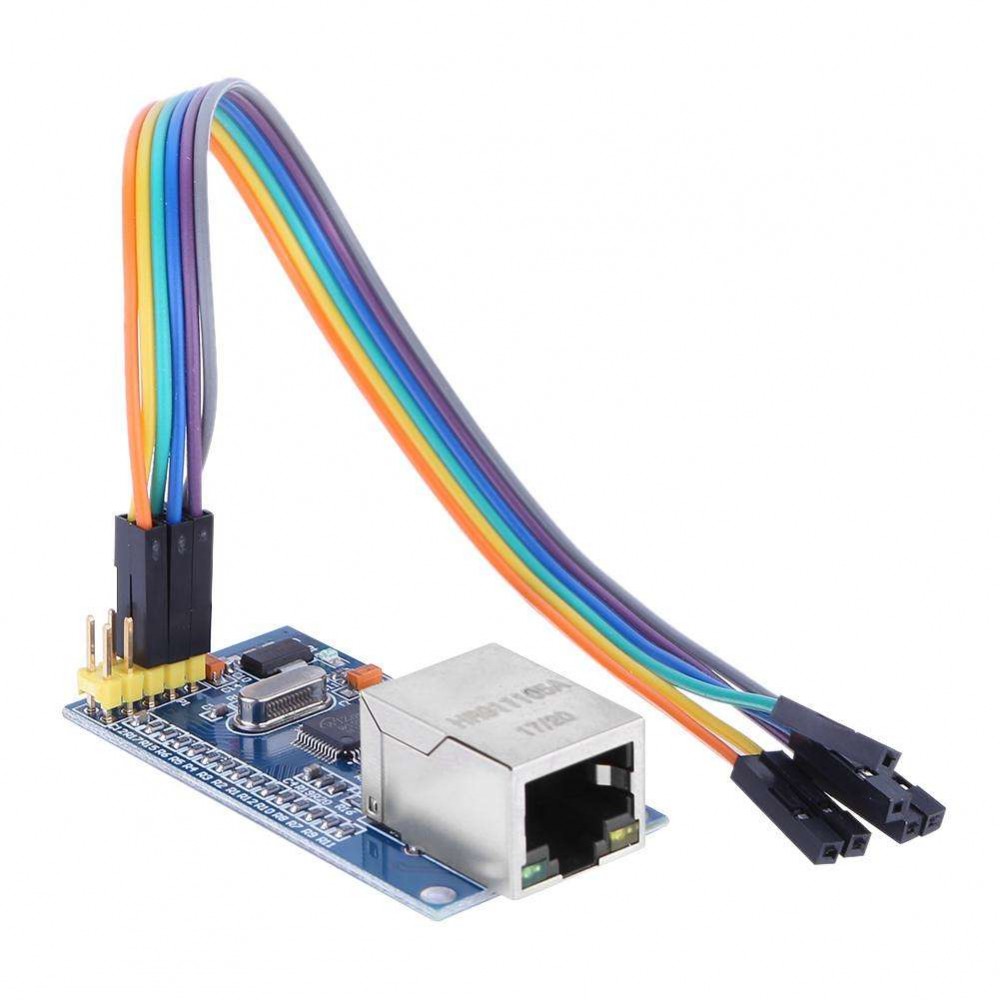

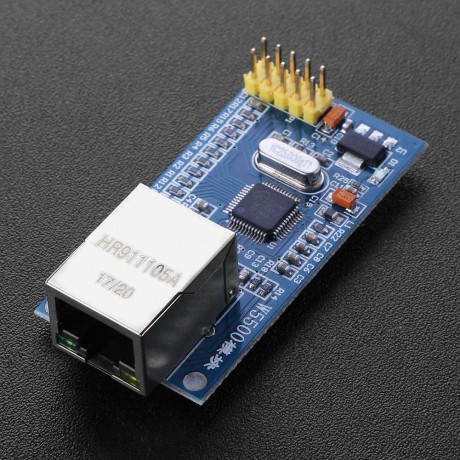

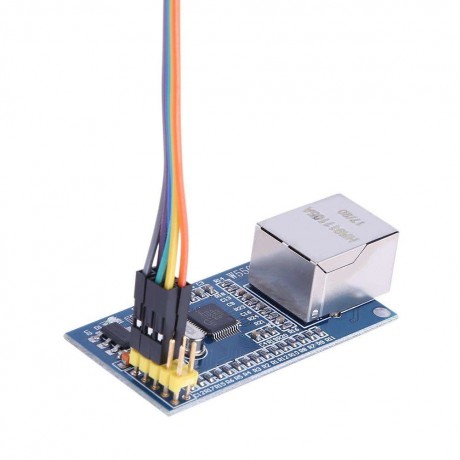

W5500 Ethernet Network Modules with Cable for Arduino TCP/IP/Ethernet/SPI Interface Feature:1. Supports Hardwired TCP/IP Protocols : TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE.
2. Supports 8 independent sockets simultaneously.
3. Supports Power down mode.
4. Supports Wake on LAN over UDP.
5. Supports High Speed Serial Peripheral Interface(SPI MODE 0, 3).
6. Internal 32Kbytes Memory for TX/RX Buffers.
7. 10BaseT/100BaseTX Ethernet PHY embedded.
8. Supports Auto Negotiation (Full and half duplex, 10 and 100-based ).
9. Not supports IP Fragmentation.
10. 3.3V operation with 5V I/O signal tolerance.
11. LED outputs (Full/Half duplex, Link, Speed, Active).
Specification:Chip type: W5500
Supports both 3.3V 5V
Hardwired TCP/IP Protocols : TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE
10BaseT/100BaseTX Ethernet PHY embedded
Supports automatic response (full duplex / half duplex mode)
Supports 8 independent sockets simultaneously
Internal 32Kbytes Memory for Tx/Rx Buffers
Power off mode: support
Network wake: support
SPI interface (SPI MODE 0, 3),convenient connection with MCU
Size: 55mm x 28mm/2.16x1.1''
Note:Please allow 1-3mm differs due to manual measurement.
Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding.
Package Content:
1 x W5500 Ethernet Network Module
