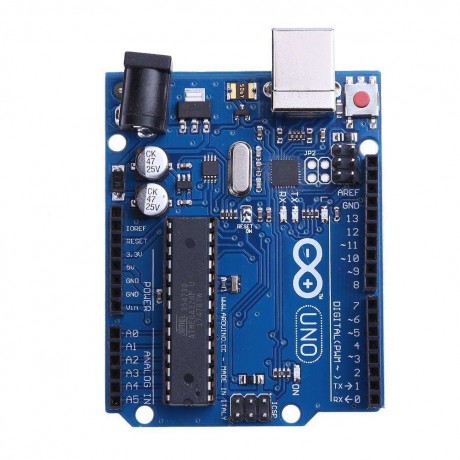

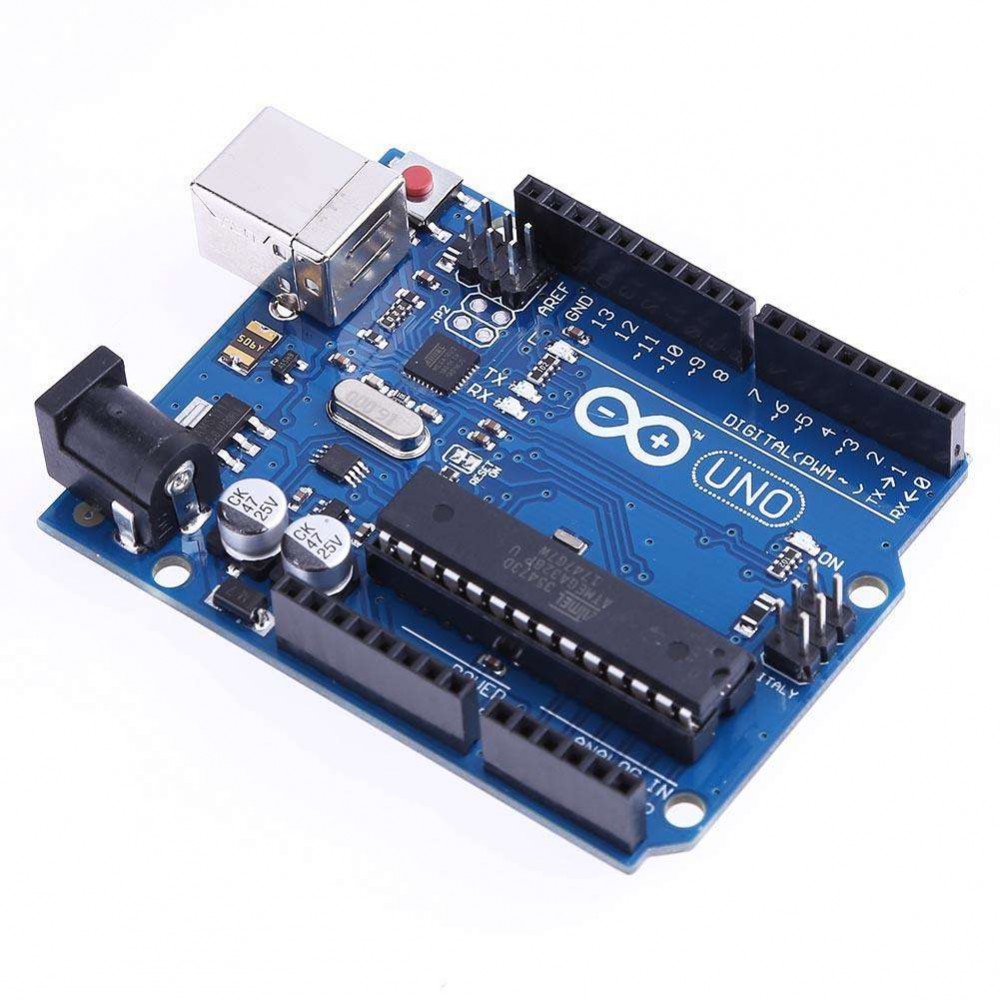

UNO R3 MEGA328P ATMEGA16U2 Development Board Microprocessor Controller Module + USB Cable + 40pinDescriptions: 1. Open circuit diagram of the original design, the development of software interface for free download, can also be in accordance with the requirements and their modified, download the program is simple and convenient.
2. Can simply use sensors, all kinds of electronic components connection (such as: LED lights, buzzer, buttons, photoresistance, etc.), make all sorts of interesting work.
3. Microprocessor controller, using high-speed development interface and the environment are very simple and easy to understand, very suitable for beginners to learn.
Specifications:Digital I/O Digital inputs/outputs were: 0~13.
Analog I/O Analog input/output: 0~5
Support ISP download function.

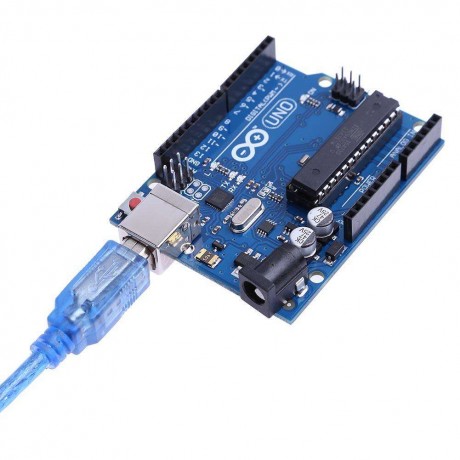

The input voltage: when connected to the computer USB without external power supply,

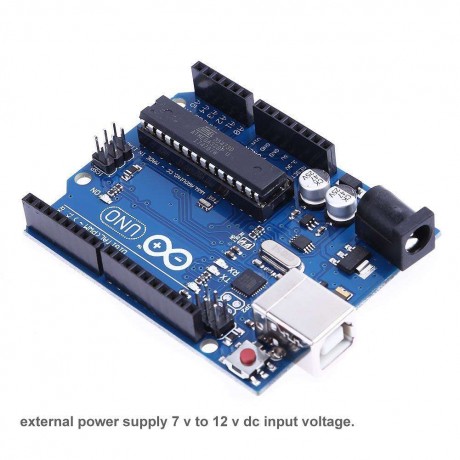

external power supply 7 v to 12 v dc input voltage.

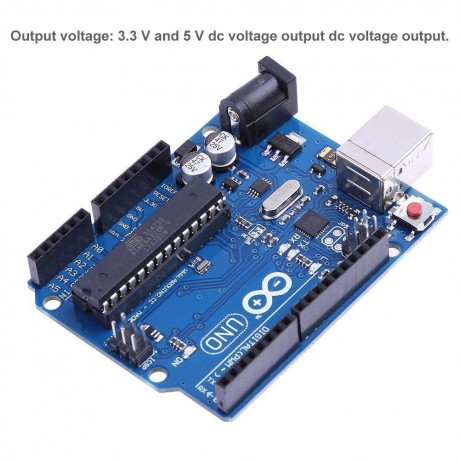

Output voltage: 3.3 V and 5 V dc voltage output dc voltage output.
USB Cable Length: approx. 50cm/1.64ft

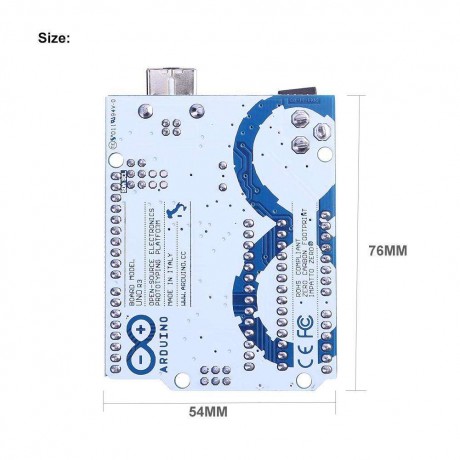

Product size: approx. 76*54*13mm/2.99*2.12*0.51''
Net weight: approx. 46g
Note:
Please allow 1-3mm differs due to manual measurement.
Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding.

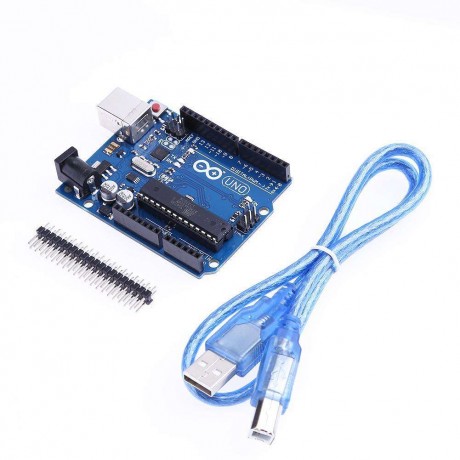

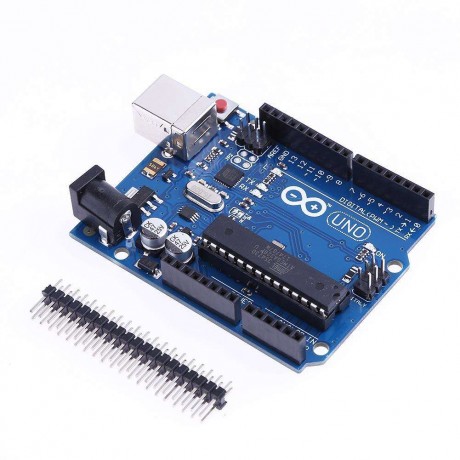

Package Content:
1 x UNO R3 Development Board for Arduino
1 x USB Cable
1 x 2*20 pin
