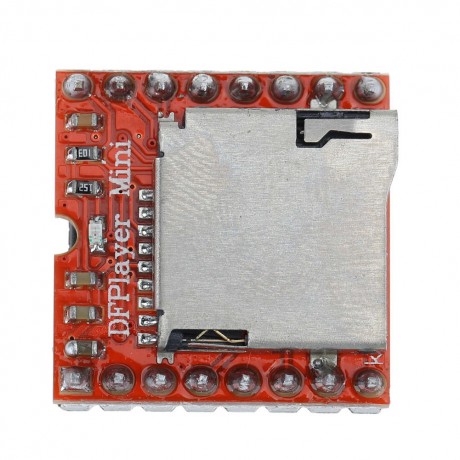

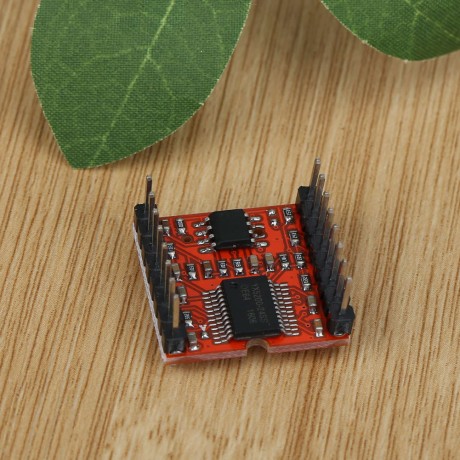

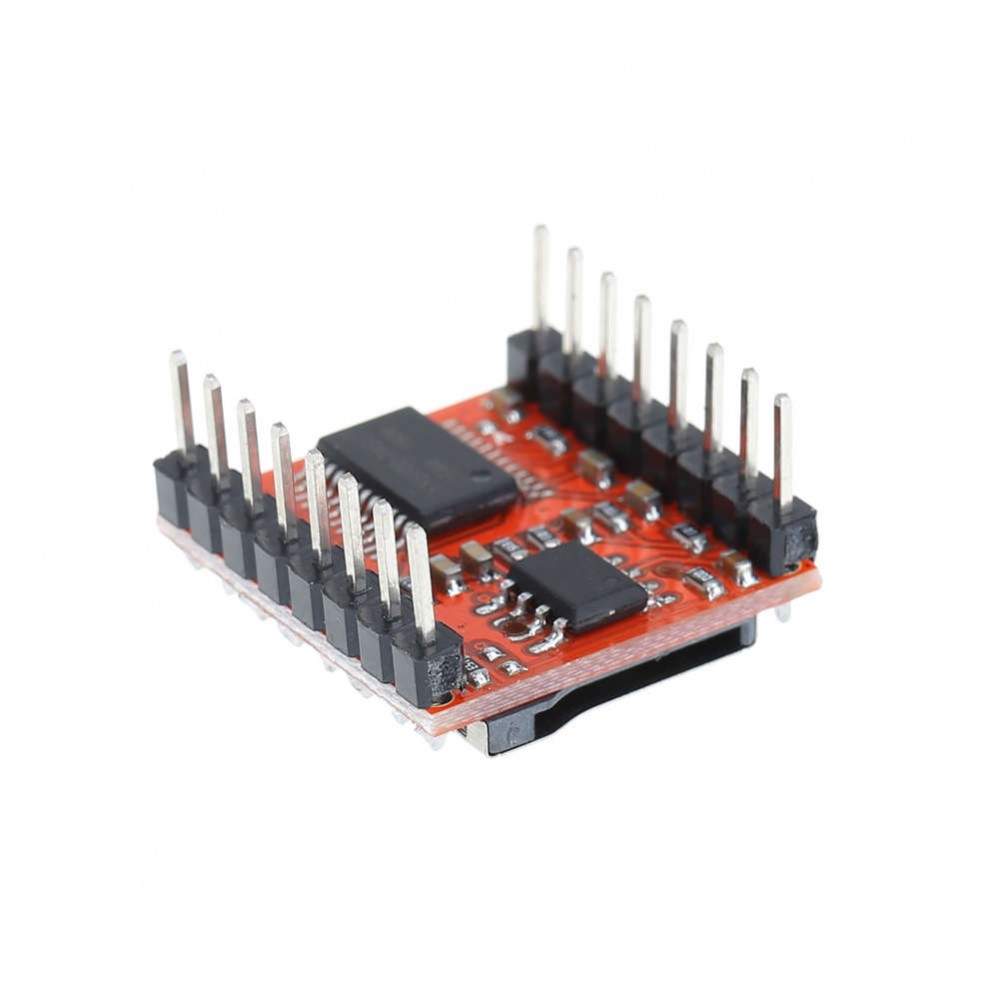

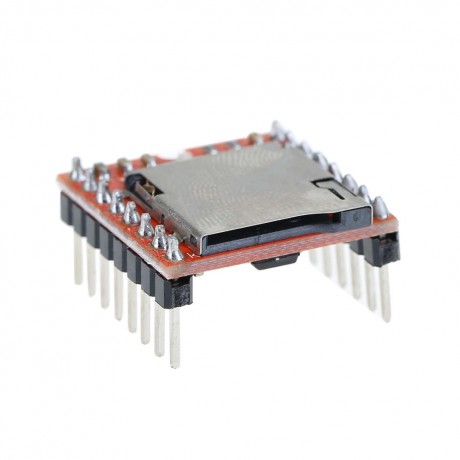

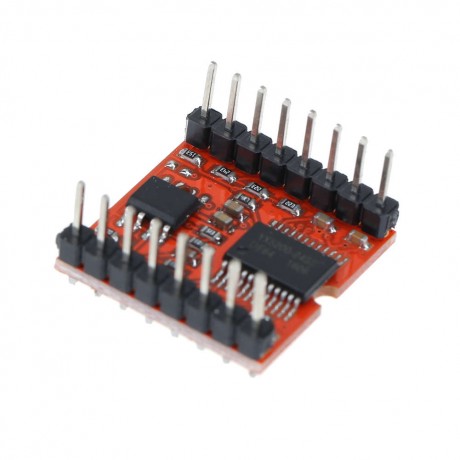

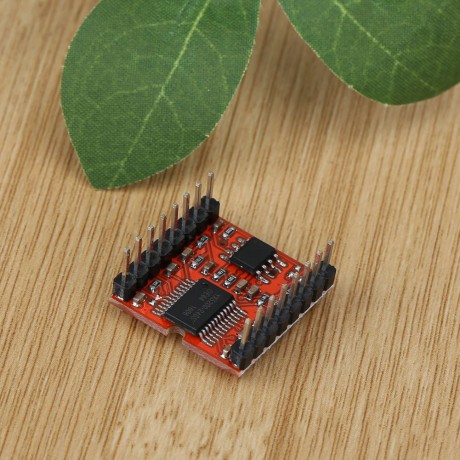

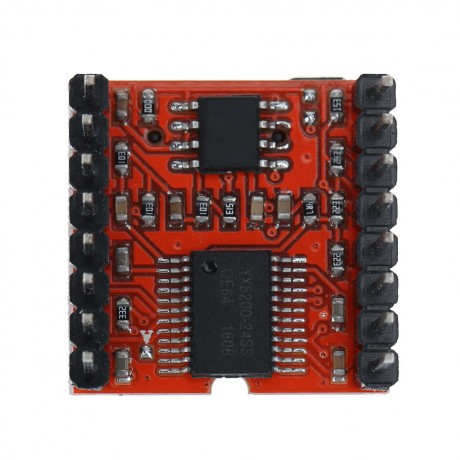

Features:This is a small and low cost MP3 module with an simplified output directly to the speaker. The module can be used as a stand alone module with attached battery, speaker and push buttons or used in combination with an Arduino UNO or any other board with RX/TX capabilities.
It is a perfectly integrated hard decoding module, which supports common audio formats such as MP3, WAV and WMA. Besides, it also supports TF card with FAT16, FAT32 file system. Through a simple serial port, you can play the designated music without any other tedious underlying operations.
Specification:Supported sampling rates (kHz): 8/11.025/12/16/22.05/24/32/44.1/48
24 -bit DAC output, support for dynamic range 90dB, SNR support 85dB
Fully supports FAT16, FAT32 file system, maximum support 32G of the TF card, Support 32G of U disk, 64M bytes NORFLASH
A variety of control modes, I/O control mode, serial mode, AD button control mode
Advertising sound waiting function, the music can be suspended. when advertising is over in the music continue to play
Audio data sorted by folder,
supports up to 100 folders, every folder can hold up to 255 songs
30 level adjustable volume, 6 -level EQ adjustable
Applications: Vehicle electronic product, intelligent housing system, voice prompt of medical appliance, household appliances and so on.
Package Content:
1 X Mini MP3 Player Module
