Raspberry Pi CM3/CM3 Lite IO Expansion Board for Raspberry Pi Computer ModuleOverview:CM IO board is an expansion board designed for Raspberry pi compute model CM3 and CM3 lite,(also support CM1).
You can get the more wide range and more flexible application environment, you can get more simpler interface.
Features:1. Can use CM3 or CM3L to implement the Raspberry Pi 3B/3B+ function.

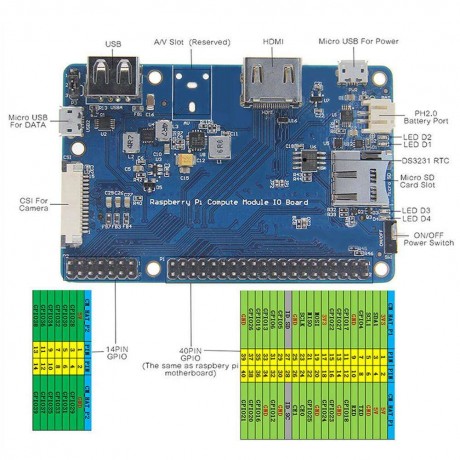

2. More GPIO extensions than Raspberry Pi 3B: include standard HAT 40PIN GPIO output (fully compatible for Raspberry Pi 3B/3B+) and extra extension 14 PIN GPIO.
3. Compatible with various expansion boards for Raspberry Pi.
4. Support power the board via battery, can read battery capacity by programming.
5. Support RTC (need to power the board via PH2.0 battery port).
6. Support CSI/DSI.
7. Support OTG interface (via Micro USB Port for data)
8. Support CM3 (build in 4GB NAND Flash), support CM3L (TF card slot has a place to use).
Specifications:Brand: Raspberry Pi
Product size: 8.5x5.6x1.5cm/3.34x2.2x0.59''
Packing size: 9x6x1.8cm/3.54x2.36x0.7''
Net weight: 31g
Gross weight: 33g
Note: Please allow slight size differs due to manual measurement.
Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understand.
Package Content:
1 x CM3/CM3 Lite IO Expansion Board
